ceiling and wall
min. width 75 cm (depending on engine also 60 cm, 65 cm and 68 cm or 70 cm)/max. width 400 cm
max. height 550 cm
max. area 16 m²
80mm
Motorization of your choice (230V)
EC - Declaration of Conformity in accordance with
ÖNORM EN 13120:2014
white (RAL 9003) standard
grey (RAL 7042)
black (RAL 9005)
Outside in white (standard), gray (natural anodized aluminum) or black
according to the latest collection and custom printing
pendulum protection
Our fabrics
In addition to their high-quality appearance, our fabrics are particularly impressive due to their light-technical properties. Find the perfect fabric for your requirements.

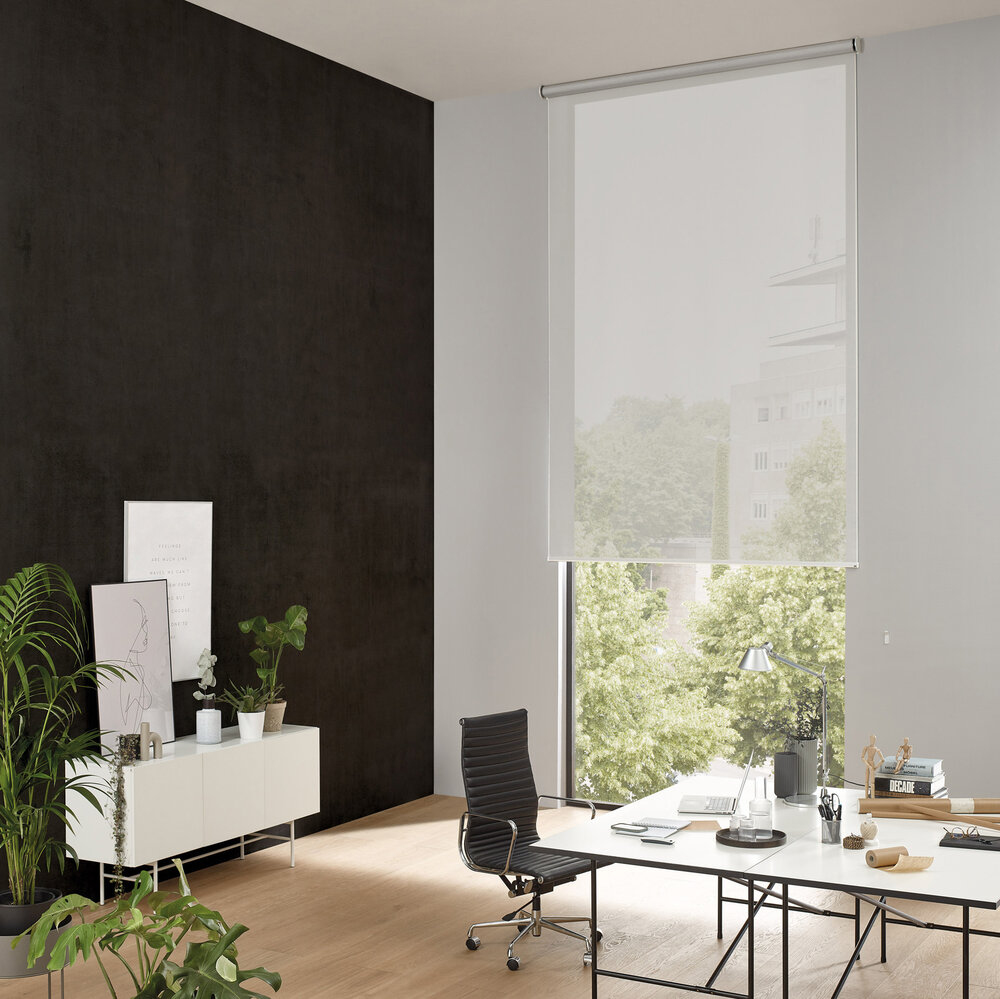

Electric blinds for sun and glare protection are used,
Version with 230 V electric motor, without side guide rails, made by LEHA.
Suitable as systems for vertical installation.
Offered brand: LEHA
Type offered: ELRO-XL
For indoor use as protection against light, glare and privacy.
Not suitable for outdoor use
1st carrier
Support (support length 121 mm) made of metal, powder-coated surface in white RAL (9003), grey RAL (7042) or black RAL (9005). Plastic cover caps, white, grey or black
2nd hanging
Fabric qualities in accordance with the current LEHA collection - max. fabric dimensions can be found in the catalog (cross seam!)
3rd wave
Aluminum shaft Ø 80 mm (optional 62mm)
4th subbar
Outer aluminum base in white RAL 9003, gray aluminum natural anodized or black RAL 9005. Plastic side end caps (white, gray, black)
5. Drive and operation
Operation with 230V electric motor - motor side either left or right
6. surface treatment
The visible aluminum parts are powder-coated in powder colors white RAL (9003), gray RAL (7042) or black RAL (9005)
