ceiling or wall
min. width 64 cm (depending on engine also 60 cm and 40 cm)/max. width 250 cm
max. height 280 cm (depending on engine also 300 cm)
max. area 7.5 m²
37mm
Motorization of your choice (24V or battery)
EC - Declaration of Conformity in accordance with
ÖNORM EN 13120:2014
stainless steel look
painted white
painted black
chromed
anodized champagne
antique anodized brass
bronzed
grey-brown anodized
Anodized or color-painted surface like mechanical paints
according to the latest collection and custom printing
Our fabrics
In addition to their high-quality appearance, our fabrics are particularly impressive due to their light-technical properties. Find the perfect fabric for your requirements.

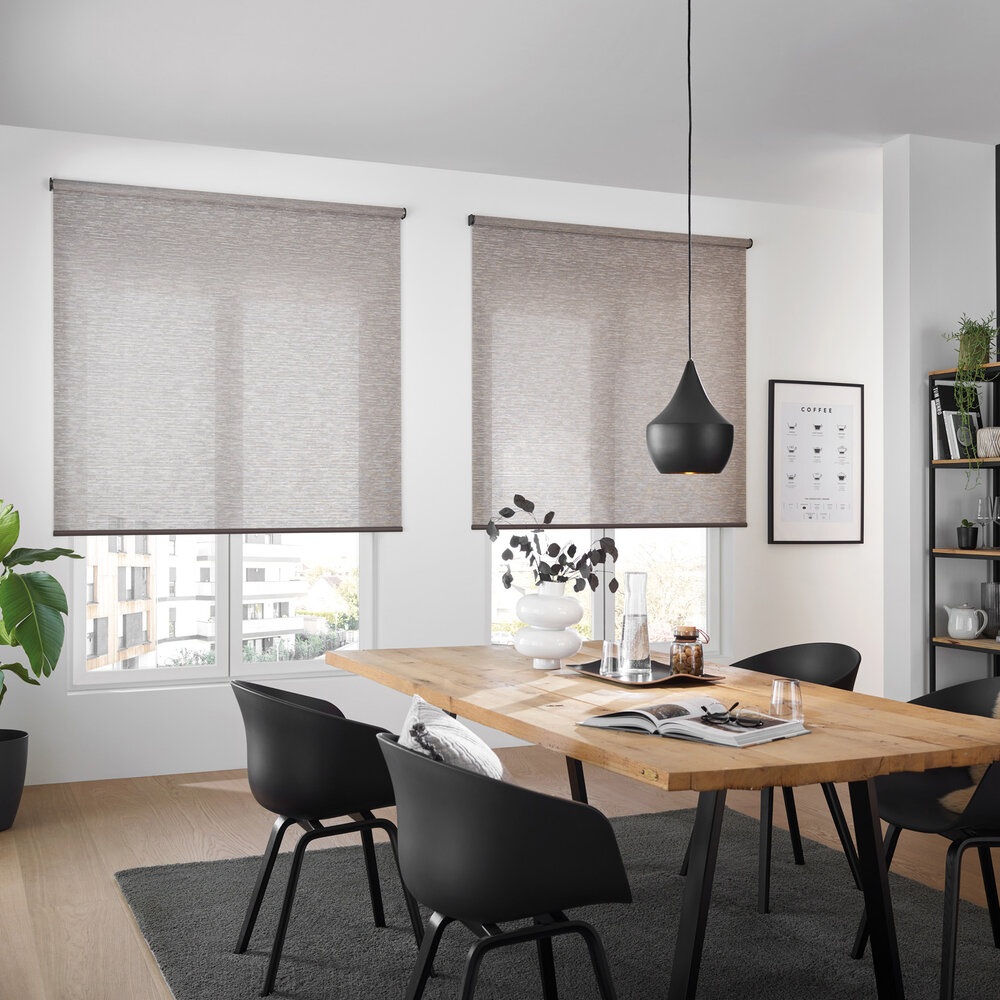

The model includes designer electric blinds, version with electric motor for sun and glare protection, made by LEHA.
Suitable as systems for vertical installation.
Offered brand: LEHA
Type offered: ELDERO-S
For indoor use as protection against light, glare and privacy.
Not suitable for outdoor use

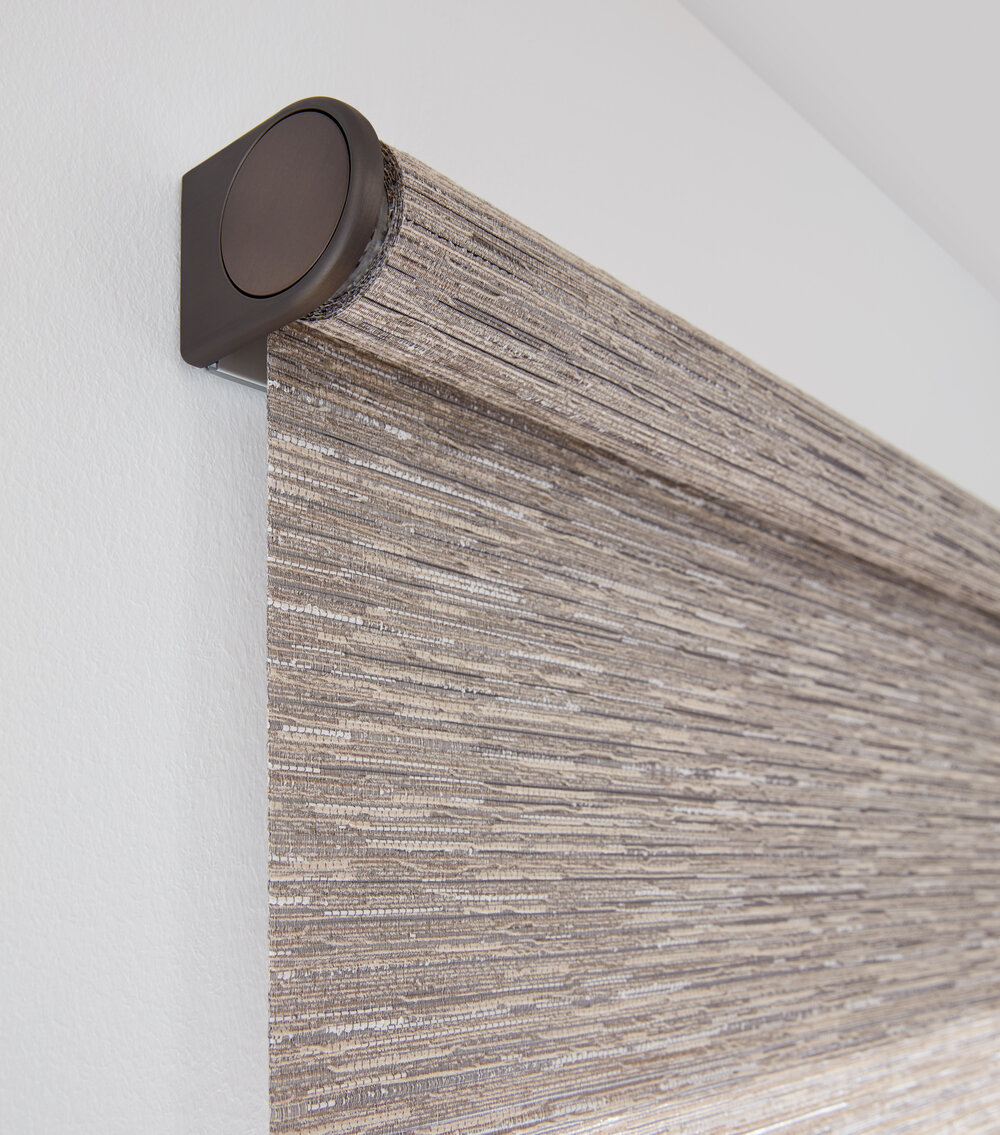

1st carrier
Metal design carrier (strap length 65 mm or optional 72 mm or 82 mm on request) either in stainless steel look, painted white, painted black, chrome-plated, anodized champagne, anodized antique brass, bronzed or grey-brown anodized
Mounting profile for clip mounting
2nd hanging
Fabric qualities in accordance with the current LEHA collection - max. fabric dimensions can be found in the catalog (cross seam!)
3rd wave
Aluminum shaft Ø 37 mm
4th subbar
Outer base strip anodized or painted in color
5. Drive and operation
Operation with electric motor - motor side either left or right
6. surface treatment
The visible aluminum parts are powder-coated in white RAL (9003), gray RAL (7042) or black RAL (9005)
